Executive summary
The deteriorating security environment in the
Indo-Pacific
-
The National
defence strategy: 2024 (NDS24) identified that the security
environment in the Indo Pacific had significantly deteriorated and the trend was
toward further deterioration. It is likely that the US no longer has a military
advantage in the Western Pacific. Major conflict is now possible with little
warning.
-
In response, Australia has changed its primary strategic defence
objective to deterrence. This paper compares the military capabilities of nuclear-powered
attack submarines (SSN) and conventionally powered attack submarines (SSK) in
the context of their respective contribution to deterrence.
The capability upgrade
-
Stealth: an SSN can stay submerged and ‘discrete’ for
far longer periods because it does not need to come close to the surface and
recharge its battery via ‘snorting’. Air independent propulsion (AIP) systems
can improve an SSK’s indiscretion rate but do not overcome the ‘snorting’
disadvantage.
-
Speed: high persistent speed provides tactical
flexibility. An SSN can use its constantly available high speed to:
- hunt
and shadow other high-speed, long-endurance submarines and ships
- transit
to an operational area much faster and spend more time on task
- evade
attack if detected
- stealthily
surveil over a greater area.
-
Endurance: an SSN does not need to refuel and can
maintain air purification indefinitely. Submerged time on task is limited
only by the food it can carry.
-
Flexibility: nuclear power allows for bigger boats and
alternative payloads. High power output permits a wider range of sensors and
greater use of digital technology. An SSN provides improved living conditions
for crew and the larger hull better supports special forces operations and
deployment of uncrewed systems.
-
Armament: SSNs can carry heavier, longer-range missiles.
The Virginia class has both land and ship attack capability using Tomahawk
missiles with a range of 1,250–2,500 km and more flexibility in its armament
load.
-
SSNs are clearly a major step up in capability from SSKs in
terms of speed, range, endurance, sensor scale, weapons loads, and
operational flexibility; however, the paper does not analyse whether SSNs are
therefore the best option for Australia either in terms of overall military
strategy or the broader national interest.
-

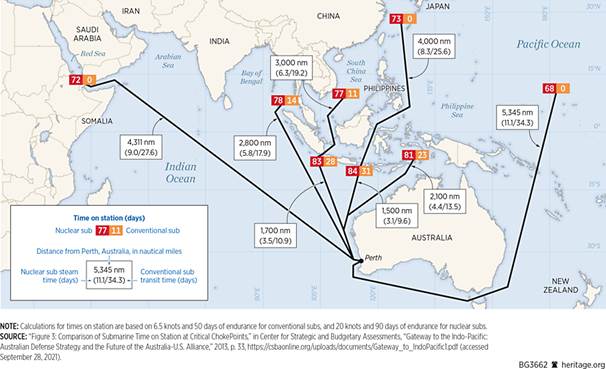

In the context of Australia’s vast submarine operating area,
nuclear submarines offer a game-changing upgrade in deterrence. Unfortunately,
Australia’s own SSNs will not be operationally available until the 2030s. In
the meantime, the US and UK are increasing the operational availability of
SSNs in the Indo-Pacific.
|
A note on terminology
Conventionally powered attack submarines like the Collins
class are collectively referred to as SSK; however, an SSK armed with guided
missiles is routinely designated SSG. An SSK with air independent propulsion
(AIP) technology is occasionally designated SSP. A small SSK suitable for
coastal or riverine environments may be designated SSC.
Conventionally armed nuclear-powered attack submarines carry
the NATO designation SSN. A nuclear submarine that carries ballistic missiles
with a nuclear warhead is an SSBN. These ballistic missiles are very large and
SSBNs are consequently much larger than SSNs. Australia does not possess, has
no plans to acquire, and is prohibited by international agreements from
acquiring nuclear weapons or SSBNs.
Background
The replacement of the Collins class submarines has proved to
be a difficult problem for successive Australian governments. Changes in
technology and in the strategic environment induced the government to approach the US
asking for access to nuclear powered submarines (SSN) and then in 2021 to cancel
an existing contract for acquisition of French
Attack class conventional submarines (SSK).
Speaking on The National Security podcast, the Deputy
Secretary Strategy, Policy, and Industry in the Department of Defence, Hugh
Jeffrey, stated that SSKs would find
stealth more and more difficult to achieve:
One thing that, when we were first
looking at this momentous change several years ago, that focussed my mind was
the assessment that we would not be able to maintain our current undersea
activity into the near future with conventional submarines … due to the
modernisation that we are seeing in the region and the advances in detection
and the challenges that conventional submarines would have in that environment.
[at 36:25 mins, emphasis added]
Jeffrey noted Australia was not the only country to realise
the need for and attempt to access naval nuclear propulsion technology, but Australia’s
close relationships with the US and UK facilitated success. The AUKUS
agreement provides a 3-phase pathway
for Australia to acquire nuclear powered submarines without acquiring the
underlying nuclear propulsion technology.
The Attack class SSK cancellation exposes Australia to a capability
gap as the Collins class age out of service. The Australian
Government plan is to bridge the gap with delivery of 3 US Virginia class
SSNs beginning in the 2030s while an SSN-AUKUS submarine is designed and then built
by the UK and Australia in the 2040s. This paper examines the
step up in capability offered by the Virginia class SSN. The SSN-AUKUS
will have ‘a huge amount of commonality’ with the Virginia class and is
expected to have higher capability.
The Australian Defence Force (ADF) and Australian defence
industry is already building up its SSN operational and sustainment expertise
through training and personnel exchanges. The first
maintenance of a US SSN has been carried out at HMAS Stirling, Western
Australia. From as early as 2027, the UK and the US plan to establish a
rotational presence of one UK Astute class submarine and up to 4 US Virginia
class at HMAS Stirling. This initiative is known as Submarine Rotational
Force-West (SRF-West) and will increase operational availability of US and UK
SSNs in the Indo-Pacific and facilitate further training of Australian
personnel.
The deteriorating strategic environment
From the 2020
Defence strategic update on, Australia has acknowledged that strategic
competition between the US and China is driving strategic dynamics in the
Indo-Pacific. The National defence strategy: 2024 (NDS24) explained that
the resulting tension and uncertainty brings an increasing risk of military
escalation or miscalculation that could lead to a major conflict in the region
with little warning (p. 11).
NDS24 confirmed that Australia faces its most challenging
strategic environment since the Second World War and that our strategic
circumstances have continued to deteriorate, consistent with the trends
identified in the 2023
Defence strategic review (DSR).
Jeffrey argued in a May 2024 address that the post-Cold War
global order is over and that Australia
now finds itself in a struggle amongst states as they compete to shape a
new world order:
That struggle won't be contained and
it won't be quick. It will span hard and soft power domain, trade and
economics, innovation and technology…
We must recognise this struggle as
structural, not incidental. And that it will drive elevated levels of
uncertainty and risk for at least the next decade. I think our overriding job
in Defence is to help ensure that this struggle doesn't tip over into confrontation.
I think the critical early lesson is to recognise that the battle for
Ukraine is actually the first war of this struggle. We should also recognise
this as a failure of deterrence. We need to ensure that this failure isn't
repeated, especially in our region. [emphasis added]
The formation of an ‘axis of adversaries’ between Russia, China, North Korea and
Iran significantly increases the chances of a conflict in one region spreading
to another. Deputy Prime Minister Marles observed that after China and Russia
signed a no-limits agreement in February 2022 on the eve of the Russian
invasion, the conflict in Ukraine became highly relevant to, and was shaping, the
Indo-Pacific.
Multiple countries in the Indo-Pacific are investing in new
and sophisticated weapons characterised by greater range and speed. Defending
the sea-air gap to the north no
longer provides protection against a military strike on Australia (p. 15).
For example, in 2024 China successfully test fired a land-based
intercontinental ballistic missile (ICBM) with the range to reach any part of
Australia (Figure 1).

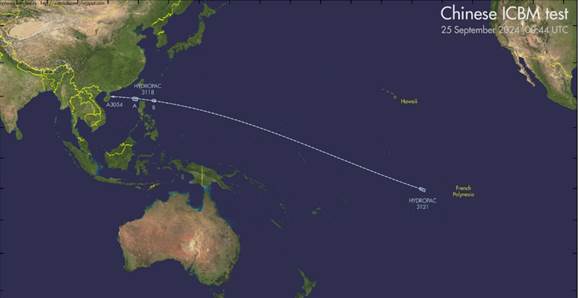

Figure 1 Chinese intercontinental ballistic
missile (ICBM) test launch
Source: SatTrackCam Leiden (b)log, A
Chinese ICBM test launch at full range, into the central Pacific, on September
25, plotted from the Navigational Warnings (HYDROPAC 3118/24, HYDROPAC
3121/24) and a NOTAM (A3054/24), 25 September 2024.
North Korea has a similar
capability. China’s new H20 stealth bomber is also assessed to have the range
to reach any part of Australia from land bases in China (p. 33).
A contested environment –
submarine forces in the Indo-Pacific
The US Congressional Commission on the
National Defense Strategy 2024 (USCNDS 24) assessed that, after
2 decades of focused military investment, China is now outpacing the
United States and has largely negated the US military advantage in the Western
Pacific (p. v). It acknowledged China had the largest navy in the world and it
continues to modernise.
China is also the world’s largest shipbuilder with a building
capacity ‘roughly
230 times as large as that of the United States’. A September 2024 report
assessed that China
is building 3 new SSNs each year, more than double the US
rate of 1.2–1.4 new SSNs per year.
Figure 2 below provides a visual approximation of the extent
of undersea competition in the Indo-Pacific in 2024. Only forces home-ported in
the Indo-Pacific are represented (this excludes the Russian fleet in the
northern Pacific and the various Atlantic fleets); but other countries,
including Russia, the UK and France, also regularly operate high-capability
submarines in the Indo-Pacific.
Note that the performance, armament, in-service
availability, and ages of these submarines vary widely, and they are only
broadly comparable. But Russia
is sharing submarine technology with China and a 2023 report argued that the
propulsion, quieting, sensors, and weapons capabilities
of the latest Type 095 Chinese nuclear submarine are approaching the latest
Russian Akula SSN.
Figure 2 Comparison of submarine forces based in
the Indo-Pacific 2024

Source: Parliamentary Library calculations. Assessments of
submarine capability and currency of information vary. For consistency, all
values except US are sourced from Submarine
Proliferation Resource Collection (nti.org). US numbers are sourced from
SUBPAC Submarines
| Commander, Submarine Force, U.S. Pacific Fleet (navy.mil) in order to
limit the numbers to submarines routinely available in the Indo-Pacific. North
Korea reportedly has an additional 41 small and mini conventional submarines armed
with torpedoes that are not represented.
Australia’s primary
strategic defence objective changed to deterrence
Australia’s overall
defence strategy remains ‘denial’ (p. 22). Three previously equally
weighted objectives underpin that strategy:
-
Shape Australia’s strategic environment.
-
Deter actions against Australia’s interests.
-
Respond with credible military force when required.
In response to the deteriorating environment, NDS24 states
that ‘deterrence is now Australia’s primary strategic defence objective’ (p.
22). (Note that Australia’s defence objective is conventional
deterrence; it is not pursuing ‘strategic deterrence’ which relies on
nuclear weapons.)
Deterrence involves convincing a potential aggressor that
the consequences
of coercion or armed conflict would outweigh the potential gains. It
requires the maintenance of a credible military capability and strategy with
the clear political will to act. As Shadow Minister for Defence Andrew
Hastie has explained:
Deterrence, in the end, is deeply
psychological. You want to haunt the mind of your opponent. To instil fear and
anxiety in them. You are sending a price signal, that war will be costly—a
price signal that saps their will to fight.
Some strategic analysts question whether conventional deterrence
is the best strategy for Australia when the 2023 Defence
strategic review concluded ‘there is at present only a remote
possibility of any power contemplating an invasion of our continent’ (p. 25).
However, Australia has a range of vulnerabilities, including
trade and supply routes, undersea cables and resources including fisheries,
seabed minerals and oil and gas. The vulnerability
of submarine cables (see Figure 3) has been highlighted by recent
attacks on cables overseas.
Figure 3 International submarine cables inside
designated protection zones

Source: The Australian Army Contribution to the National Defence
Strategy Australian
Army Contribution to the National Defence Strategy 2024 | Australian Army.
Is deterrence the best strategy for Australia?
There are strategic commentators who argue that neither US
nor Australian security is directly threatened by China and that a
more expensive forward defence posture is unnecessary. However, that
position must be informed by both a careful assessment of the risks and recent
changes in warfare driven by rapid technological innovation.
The broader
debate over whether Australian strategy should focus on the defensive
application of force near Australia’s borders or use a forward defence posture
is not addressed in this paper. A selection of resources for further reading
are provided at the end of the paper.
Has surveillance technology rendered crewed
submarines obsolete?
Quite dramatic changes in military technology, including
the rise of uncrewed military systems and the proliferation of missile and
space technology, are rapidly changing the conditions of modern warfare. Some academics have argued that the oceans will soon
be too transparent for any crewed submarines to operate safely. However, that argument is
contested. Hugh Jeffrey responds that despite increases in detection capability,
Defence sees submarine capability as a fundamentally durable technology [at
38:30 mins]:
The idea of the transparent ocean that is often
trundled out is just bunk… As detection capabilities grow, so do stealth
capabilities grow... No-one in the Defence Department believes that a
transparent or translucent ocean is a credible basis on which to make
judgements around how we invest in undersea capability.
The complex physics of
water, deeply affected by temperature, salinity and pressure, make
transparency an unlikely outcome. In ‘Climate change and military power: hunting for
submarines in the warming ocean’, the
authors report that in some locations the range of detection of underwater
acoustics is actually reducing due to climate change.
Australia’s allies and
partners continue to make large-scale investments in next-generation
underwater systems alongside development of autonomous systems. Germany
and Japan are
continuing to invest in next-generation crewed SSK technology, including AIP
and lithium-ion batteries. Russia, China and India are
also continuing to build crewed SSK and SSN.
|
A vast operating area
Peace and security in the vast area of the Indo-Pacific and
beyond to the east (Figure 4) is critical to Australia’s national interests,
given it is a maritime trading nation. Australian
submarines have for decades been assigned intelligence, surveillance and
reconnaissance (ISR) and deterrence tasks across this area.
Australia’s future submarines must be capable of operating
in a contested environment anywhere in the Indo-Pacific: from the Sea of Japan
to Kiribati to Antarctica to the Red Sea. However, the slow transit speed of an
SSK means it could take more than a month to transit to those areas from its base
at HMAS Stirling. It was the demands of Australia’s maritime geography that prompted
the Navy
League to lobby in 2009 for the government to commit to acquiring SSNs as a
replacement for the Collins class.
Figure 4 Key sea lanes and military facilities in
the Indo-Pacific
Source: Vijdan Mohammad Kawoosa, Reuters,
31 January 2024.
In September 2024, Deputy Prime Minister Richard Marles argued
that it was a strategic imperative and ‘utterly essential’ for Australia to
have a ‘first
rate, long‑range submarine capability and the only way we achieve
that is through a nuclear‑powered submarine capability’.
The capability upgrade: SSK v SSN
According to strategic
analyst Ross Babbage:
SSNs deliver a far higher level of
capability than diesel-electric boats. They are in a completely different class
in terms of speed, range, endurance, sensor scale, weapons loads, and
operational flexibility.
Detailed information about the capability of submarines
(particularly range, diving depth and endurance) is closely held. However,
there is some publicly available information to allow comparison.
Table 1 uses the current Collins capability as a
baseline and compares both a more modern conventional submarine, the Japanese Soryu
class (which Australia considered buying) and the Viriginia class SSN. Note
that some of the published data on speed, range and endurance is inconsistent.
In general, Table 1 uses the lowest value among the reliable sources.
Table 1 Comparison of Collins and Soryu class
SSGs and Virginia Class SSN
|
Collins class SSG
|
Japanese Soryu class SSG/SSP
|
Virginia class SSN – Block IV
|
Maximum
speed (knots)
|
-
dived: 20
-
surfaced or
snorting: 10
|
-
dived: 20
-
surfaced or
snorting: 12
|
|
Range
(nautical miles)
|
Speed
dependent
-
11,500 –
surfaced at 10 knots
-
9,000 –
snorting at 10 knots
-
400 – dived at
4 knots
-
33 – dived at
21 knots
|
Speed
dependent
-
6,100 – dived at
6.5 knots (with AIP)
-
Last 2 boats converted
to higher capacity, faster-charging lithium-ion battery. AIP removed.
|
Not speed
dependent
-
unlimited – dived
at 34 knots
|
Dived
endurance
|
70 days
or 47 days on station at 4 knots
|
[Not
found. Research institute CSBA assumed 70 days endurance generally
for SSK]
|
Effectively
only limited by food: 80–120 days
[CSBA assumed 90 days endurance for SSN]
|
Length x
Beam (m)
|
77.8 x
7.8
|
83.7 x
9.1
|
114.8 x
10.36
|
Dived
displacement
(metric tonnes)
|
3,407
|
4,200
|
7,925
|
Armament
|
A mix of
22 Mk 48 ADCAP heavyweight torpedoes or Harpoon missiles or 44 Stonefish
mines in lieu
|
A mix of
about 30(?) Type 89 heavyweight torpedoes or Harpoon missiles or mines
|
12
Tomahawk missiles plus a mix of 26 Mk 48 ADCAP heavyweight torpedoes, Harpoon
missiles or 52 mines
|
Missiles
|
UGM 84C sub Harpoon Block 1B –
tube launched subsonic anti-ship cruise missile
|
UGM-84 Harpoon – tube launched subsonic anti-ship
cruise missile
|
Two
Vertical Payload Tubes each holding 6 Tomahawk subsonic cruise missiles with land
strike capability
|
Missile
payload (kg)
|
224
|
224
|
313
|
Missile
range (km)
|
124–240
|
124–240
|
1,250–2,500
|
Features
|
Modernised
from
2013–16.
Still
has a very useful set of sensors and weapons.
|
X type
rudder for high manoeuvrability
|
Propulsor
for quiet operation
Reconfigurable
torpedo room for special forces
Can
carry deployable sensors and uncrewed underwater vehicles
|
Crew
|
58
total; 8 officers
|
65
total; 9 officers
|
132
total; 15 officers
|
Cost
(US$m)
|
Not for sale
|
~500–700
|
~3,600–4,600
|
Sources: Jane’s, Jane’s
Fighting Ships, (London: Jane’s Yearbooks, 1972– ), pp. 30, 437, 934; Eric
Wertheim, The
Naval Institute Guide to Combat Fleets of the World : their Ships,
Aircraft, and Systems, (Annapolis, Maryland : U.S. Naval Institute,
2013) pp. 20–21, 844–845; US Navy, Attack
Submarines – SSN, Submarine Industrial Base Council ‘Virginia
Class SSN’; Royal Australian Navy ‘HMAS
Rankin’; Naval Technology, SS
Soryu Class Submarines 26
February 2021; Center for Strategic & International Studies Missile Threat website ‘Harpoon at a glance’
and ‘Tomahawk at a
glance’.
The high dollar cost and opportunity cost of an SSN
deterrent
The Deputy
Prime Minister stated that the cost of the nuclear powered submarine
program would roughly amount to 0.15% of GDP for the life of the program,
which Prime
Minister Albanese estimated could be ‘between AU$268 billion and AU$368 billion’.
In 2023, the
Parliamentary Budget Office estimated the amount to be A$367.6 billion
in out-turned dollars, which included a A$122.9 billion contingency. However,
it is important to note that the
AUKUS deal also offers Australia an opportunity to learn from over 75 years
of US and UK experience and quickly develop a very high-tech manufacturing base
with export opportunities supporting both the US submarine industrial base and
the wider AUKUS industrial base.
Adding Australia to the SSN submarine manufacturing and
sustainment base and other AUKUS pillar II capabilities, like missile
production, will
broaden Western industrial capacity and improve supply chain resilience – a
key contribution in itself to regional deterrence.
While the ‘opportunity cost’, or other
capability forgone to buy SSNs, is a critical issue, this paper does not
analyse whether SSNs are the best option for Australia either in terms of
overall military strategy or the broader national interest.
Any review of the trade-offs has to consider the cost and
effectiveness of any other option to achieve the integrated deterrence that the
government has identified as critical to Australian national security. Some have
argued that better deterrence could be obtained by acquiring
B-21 stealth bombers (p. 19).
Key SSN advantages explained
Hugh Jeffrey argued that as a 3-ocean nation (Indian,
Pacific and Southern oceans) with a unique ratio of population size to
territory, the
critical space for deterrence is the undersea domain. According to Jeffrey,
Australia’s undersea capability must necessarily have range, endurance and
stealth:
No other platform matches the
stealth, endurance and mobility and mix of capabilities that a nuclear-powered
submarine provides; and its increasingly clear, based on our own assessments
that conventional submarines won’t have the range or endurance in the coming
decades, or indeed the stealth, to meet Australia’s requirements [emphasis
added].
It is worth noting that, given critical decisions made by
the current and previous governments, acquiring a more advanced conventional
attack submarine is probably no longer a realistic option because it is
unlikely any could be made available in time to cover the gap caused by Collins
class ageing out of service.
Stealth – SSNs have a better indiscretion rate
Stealth is the foundation of the deterrence offered by
submarines. A submarine has a lethal capacity to detect and disrupt operations
that an adversary cannot ignore. Not being able to identify the location of
that submarine introduces complexity into the military calculations of an
adversary. If a submarine is detected, an adversary can ‘fix’ it, calculate its
future possible operating area and ultimately attack it. Detection immediately
limits the area in which adversary forces are at risk.
A submarine is most easily detected and most vulnerable
when it is in port. It also risks detection, and is more vulnerable to attack,
every time it surfaces or raises a mast above the surface.
Retired submariner Rear Admiral Monty Khanna (Indian Navy)
describes the indiscretion
rate as an important parameter for measuring a submarine’s ability to
remain covert:
Indiscretion Rate is the percentage
of time that a submarine has to expose a part of itself above the surface
measured against the total time spent at sea. In conventional submarines,
the requirement to become indiscrete is primarily driven by the requirement to
charge batteries; a process that requires several masts to be exposed above
the sea surface [emphasis added].
SSKs typically become indiscrete
daily
An SSK recharges its batteries by surfacing, or travelling
close to the surface and using a snorkel (snorting),
to run its diesel generators. For example:
[The
Russian Project 636M Kilo class operated by China] typically needs to come
up to snorkeling depth every day for two to three hours to recharge its
batteries, assuming a 10% – 12% indiscretion rate, thus greatly increasing the
risk of detection. At best, a Kilo-class submarine can stay submerged at slow speed
for about three days before needing to snorkel.
During snorting a submarine becomes indiscrete because it
is generating a detectable signature which uniquely identifies it as a
submarine. The signature is a combination of factors:
-
Several masts are visible above
the surface, which can be seen and may also generate a visible wake on the
ocean surface.
-
The masts can also be detected on
radar.
-
The diesel generators are
acoustically very noisy and generate a thermal signature.
-
Sensors and communication
equipment may emit a detectable electromagnetic signature.
Submariners use multiple techniques to hide snorting
activity and minimise signatures; however, AI-assisted
satellite and drone surveillance have already compromised the capacity of
SSKs to remain undetected while snorting and it is expected to become
increasingly difficult.
Geographic challenges around Australia force SSKs to become indiscrete
Retired Australian submariner and past president of the
Submarine Institute of Australia, Peter
Briggs, noted in 2016:
Australia’s geography poses
particular challenges for a transit northward through the Indonesian
archipelago—narrow straits create several choke points to be negotiated
enroute. To avoid surveillance or casual observers in the approaches, strait
and egress areas, these choke points must be transited covertly. The prevalent
ocean current flows southward, adding to the energy requirements.
According to Briggs, a submarine needs a dived 8-knot speed
of advance to negotiate these straits covertly; and this is a difficult task
for any SSK, even one fitted with AIP. The load on the battery means a
conventional submarine has little option but to snort while navigating the
straits, or as soon as it is clear of the straits, leaving it vulnerable to
surveillance. An adversary can position its own assets near the straits to
detect, fix and target submarines while they are forced to snort at periscope
depth. The SSN avoids this vulnerability because it does not have to snort at
all and can maintain both the ‘hotel load’ (for example, air purification,
cooking, lights, cooling, combat system) and a more than adequate speed of
advance.
For nations with smaller and shallower maritime zones such
as Singapore,
where the submarine is not forced to become indiscrete frequently, SSKs are still
a formidable capability.
AIP systems can improve SSK indiscretion rates
Some SSKs – for example, the new German/Norwegian
Type 212CD and Spanish
S-80 – have AIP systems, which improve the indiscretion rate by reducing
the frequency of snorting. The propulsion system of the Type 212CD combines
air-independent propulsion (AIP) and hydrogen fuel cell technologies to
provide significantly increased dived endurance. Chief of the Royal Norwegian
Navy, Rear Admiral Oliver Berdal said:
[The Type 212CD ] can stay underwater for weeks
without exposing itself, and that is a game changer. You fundamentally change
the vulnerability, because you bring down exposure.’
However, the equipment that manages the atmosphere in a
submarine is power-intensive and battery management may still require an SSK
equipped with AIP to come near the surface regularly to use a mast to refresh
the atmosphere. Academic Dr Sarah Kirchberger and naval systems engineer
Christopher Carlson recently wrote in an Australian
Naval Institute article:
Conventional
AIP boats still need to ventilate daily to renew the atmosphere with
fresh air, unless the crew relies on a limited supply of consumable chemical
systems to purge carbon dioxide and carbon monoxide from the atmosphere.
Oxygen isn’t a problem as the crew can vent off a little from the AIP cryogenic
oxygen tank to support their needs.
Both fuel cell and oxygen based AIP systems also have
limited capacity; once the fuel is depleted, the AIP cannot be used until the
submarine returns to port for refuelling. Recharging
the submarine main batteries via an AIP is not a viable option. AIP
systems are heavy, currently less energy efficient than diesel systems, and
take up space which could be used for sensors or weapons.
|
Future ‘nuclear battery’ AIP systems
Kirchberger and Carlson considered reports that China
is developing a ‘nuclear battery’ (a very small micro-reactor). They
hypothesised that a nuclear battery AIP system in an SSK ‘could support
submerged transit speeds of up to 9 – 10 knots while meeting all hotel loads
and the electrical power requirements of the nuclear plant auxiliaries’. The
ample electrical power offered by a nuclear battery would potentially allow a
full spectrum of atmospheric control equipment, offering a capacity to remain
submerged indefinitely and conserving the main submarine battery for
propulsion.
SSKs can be quieter
SSKs have a small advantage in noise signature when
quietly on station. The improved Russian Project 636 Kilo class SSK is so quiet
it has been dubbed the ‘Black
Hole’; and a Collins class running on battery and lying motionless on the
seafloor is effectively silent. The advantage can only be employed during
necessarily limited periods when the SSK is able to switch off systems.
The quiet, but not silent, reactor on an SSN must remain
constantly running and might be detected using modern
technology; but it is likely that the noise of simply moving through the
water is more detectable than the reactor. SSNs also have internal systems to
further reduce noise.
SSN indiscretion rate is near zero
As SSNs are not required to snort to charge batteries and
have sufficient power to continuously run equipment to manage the atmosphere,
their indiscretion rate is near zero. The energy density of the nuclear fuel is
so high that the reactor does not ever need to be refuelled throughout the life
of the submarine. Managing the fuel use of an SSN is a issue affecting the
length of service of the submarine rather than an immediate tactical problem.
SSNs are not a complete stealth solution. Both SSNs and
SSKs are vulnerable to open-source
tracking and to detection of other signatures – for example, magnetic fields. Hydrodynamic
noise is also unavoidable for any submarine due to its movement through
water.
SSNs also emit a thermal signature since the reactor must
be cooled constantly and hot water discharge is a byproduct; however, this
thermal signature is far lower than that of an SSK running a diesel engine.
Mitigation
of submarine signatures is under constant development, and, given the
secrecy of the submarine services, it is unclear whether the Collins has any
real advantage in acoustic stealth or how much of a problem the acoustic
signature of an SSN is operationally. In any case, there are 2 factors that
also contribute to stealth and are arguably much more important in the context
of the vast operational area around Australia – persistent speed and endurance.
Speed
– an SSN’s high persistent speed provides tactical flexibility
‘Battery anxiety’ was an issue
for submarine captains long before smartphone users became sufferers. The
top dived speed for an SSK of about 20 knots is only available for short bursts
because it uses so much battery power. It can only sustain
that speed for 15 minutes to an hour. A sustained speed of 6.5 knots is a
more realistic baseline for calculating SSK cruising speed and the maximum
submerged transit speed of a submarine utilising a conventional AIP system
is only 4–6 knots. That is a problem when submarine-hunting surface ships and
SSNs can achieve and sustain speeds of over 30 knots.
A Virginia class SSN has a higher dived speed than even the
most modern SSK, but more importantly, it has a much higher persistent speed.
The faster an SSK goes, and the more often it needs to change depth, the faster
the battery drains and the sooner it needs to recharge and become indiscrete,
but an SSN can manoeuvre without depleting its immediate future capacity. This
high persistent speed means an SSN can better track surface ships and other
SSNs.
An SSK also cannot commit its total battery capacity to
propulsion because it requires energy for the hotel load. By contrast, an SSN
can maintain its hotel load and use its higher speed persistently without
trading away immediate future manoeuvring capacity.
Figure 5 below illustrates the contrast in potential
transit times and time on task at 6.5 knots for an SSK and 20 knots for SSNs. The
Virginia class has the endurance to complete each of these transits dived,
while the Collins has to snort frequently, risking detection each time.
Figure 5 Transit time and time on station
comparison for SSNs and SSKs
Source: AUKUS:
U.S. Navy Nuclear-Powered Forward Presence Key to Australian Nuclear Submarine
and China Deterrence, The Heritage Foundation
Due to the Virginia class SSN’s near zero indiscretion rate
and its speed, an adversary has to consider that 5 days after a Virginia class
SSN dives off the coast of Fremantle, it might be conducting surveillance and posing
a threat anywhere in the Indo-Pacific and remain undetected for weeks or months.
An adversary fleet can therefore be held at risk across the entire Indo-Pacific
for extended periods by a single SSN.
Attempting to find and fix that submarine would require an
adversary to commit substantial resources, potentially removing key resources
from other tasking.
More manoeuvrable and survivable
High persistent speed makes an SSN more manoeuvrable than
an SSK and provides increased tactical
flexibility. High persistent speed also substantially improves
the SSN’s survivability if detected because it can use its higher dived speed
for longer to more effectively evade torpedoes and pursuers and avoid being
forced to the surface.
Endurance – SSNs can stay on task longer in a contested
operational area
Dived endurance is critical to submarine effectiveness. Briggs
has stated:
Dived endurance, the ability to
remain submerged without having to expose the submarine by recharging the
battery, is a critical (I would say life or death) characteristic of
submarines, particularly to meet Australia’s requirements to operate in areas where
the sea and air space isn’t under our control. It improves tactical mobility,
effectiveness, flexibility and survivability in both transit and patrol area
operations.
Endurance also translates to capacity to stay on task. The operational
time on task of an SSK is limited by the endurance of its battery and any
restrictions on its opportunity to recharge (such as surveillance in the area).
Even if an SSK is not moving when conducting ISR activities, the battery is
being used for the hotel load. If it cannot snort without risk of detection in
the operating area, it will have to move away to recharge. It also must
maintain enough battery reserve to conduct emergency manoeuvring if it is
detected or has an
emergency.
As noted above, the constant power supply of the SSN can
continually maintain its hotel load and manoeuvre capability. It also does not
need to leave an operational area to refuel, and its dived endurance and time
on task is effectively limited only by the food it can carry.
Flexibility – nuclear propulsion permits bigger boats and
payloads
SSNs have more available power so they can be bigger, carry
more armament and have room for alternative
payloads (for example, special operations deployments, operation of
autonomous underwater vehicles or ISR). The Virginia class has superior
features to support special
forces, including a reconfigurable torpedo room, which can
accommodate a large number of personnel and all their equipment for prolonged
deployments.
The larger boat is more comfortable for the crew and a
higher electrical capacity permits more
advanced sonar and tactical systems. Figures 6 and 7 illustrate the
contrast in the space and technology in the control rooms of the submarines.

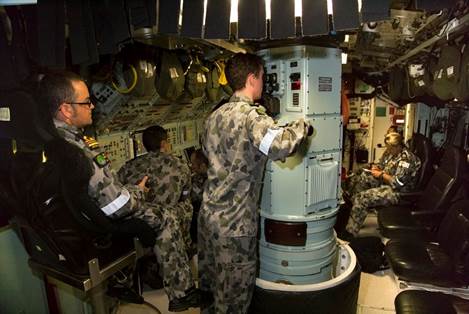

Figure 6 Control room of Collins class submarine
HMAS Sheean
Source: CPOIS Damian Pawlenko,
Royal Australian Navy, 22 November 2016.
Figure 6 shows the Collins class bulky optical periscope,
but the Virginia class has a digital periscope, which provides more
room and an improved layout. The image can also be viewed by more than one
person at a time, offering the commanding officer enhanced situational
awareness.
Figure 7 Control room of USS Hawaii, a
Block I Virginia class submarine
Source: Petty
Officer 1st Class Victoria Mejicanos/United States Navy, 23 August 2024.
Armament – SSNs can carry heavier, longer-range missiles
The additional size and power of SSNs permits heavier
armament loads. The Block IV Virginia class is fitted with a vertical launch
Tomahawk missile system, which has a range of 1,250–2,500 km
and a land attack capability. The Collins class has a Harpoon missile system, which
has a lighter warhead with a range of 90–240 km and is
designed as an anti-ship system. The submarines both deploy Mk48
heavyweight torpedoes for attacking surface ships and other submarines, but
unlike the Collins class, the Virginia class does not have to use its torpedo
racks for storing missiles and can carry more armament overall.
Conclusion
SSKs are most useful for nations with smaller and shallower maritime
zones, where the submarine is not forced to become indiscrete as frequently. It
is unlikely that even a more advanced SSK with an AIP system could provide the
level of stealth, speed and endurance necessary for the tasks required of
Australia’s submarines through the vast operating area of the Indo-Pacific.
A single Virginia class SSN is a powerful deterrent because
its armament, stealth, speed and endurance combine to hold an entire adversary
fleet at risk anywhere in the Indo-Pacific and for months at a time. The shorter
range and smaller armament load as well as lower speed and stealth limit the
area in which an SSK can hold adversary forces at risk. Lower endurance reduces
the time that threat can be maintained.
The Australian Government regards SSNs as a strategic
imperative essential to Australia’s future. Despite the strategic imperative,
Australia’s own Virginia class submarines will not be operational until the
2030s. Additional deterrence will be provided until then by increasing the
availability of UK and US SSNs in the Indo-Pacific through the SRF-West initiative.
Links for further reading
Is a strategy of deterrence the right choice for
Australia?
Hugh Jeffrey and Rory Medcalf, ‘Australia’s
AUKUS Officials, Part I’, The National Security Podcast, ANU
National Security College, 18 July 2024.
Luke Gosling, ‘Deterring
at a Distance: The Strategic Logic of AUKUS’, Lowy Institute, 24 June
2024
Michael Pezzullo, ‘The
Long Arc of Australian Defence Strategy’, The Strategist, 11 May
2024.
Hugh Jeffrey, ‘Middle
Power Deterrence’, Address to Air and Space Power Conference 2024, 8–9 May
2024.
Hugh White, ‘Fatal
Shores: AUKUS is a Grave Mistake’, Australian Foreign Affairs 20,
February 2024: 6–50.
Elizabeth Buchanan, ‘Pit
Stop Power: How to Use Our Geography’, Australian Foreign Affairs 20,
February 2024: 69–86.
Ross Babbage, The
Next Major War: Can the US and its Allies Win Against China? (Amherst,
New York: Cambria Press, 2023).
Department of Defence, National
Defence: Defence Strategic Review (Canberra: Department of Defence,
2023).
Sam Roggeveen, The Echidna Strategy:
Australia’s Search for Power and Peace (Melbourne: La Trobe University
Press, 2023).
Department of Defence, 2020 Defence
Strategic Update (Canberra: Department of Defence, 2020).
SSN/SSK capability
Sarah Kirchberger and Christopher Carlson, ‘Mysterious New
Chinese N-sub’, Australian Naval Institute, 24 January 2025.
John Blaxland, ‘Australia
Can’t Afford an AUKUS About-Face: 5 Things the Critics are Getting Wrong’, The
Conversation, 15 September 2024.
Ross Babbage, ‘Deterrence
and Alliance Power: Why the AUKUS Submarines Matter and How They can be
Delivered’, The Interpreter,
29 July 2024.
Ronald O’Rourke, Navy
Virginia-Class Submarine Program and AUKUS Submarine (Pillar 1) Project:
Background and Issues for Congress (Washington DC: Congressional
Research Service, 5 August 2024).
Peter Clarke, ‘Opinion:
For a Subs Commander, Nuclear is the Only Way’, The Australian, 17 March
2023.
Peter Clarke, ‘‘Complete
Nonsense’: Retired Admiral Dismisses Turnbull AUKUS Criticism’, Sky News,
10 January 2023.
Brent Sadler, AUKUS:
U.S. Navy Nuclear-Powered Forward Presence Key to Australian Nuclear Submarine
and China Deterrence, Backgrounder, (Washington DC: The Heritage
Foundation, 12 October 2021).
Hugh White, ‘SSN
vs SSK’, The Interpreter, 29
September 2021.
Nicole Brangwin, Managing
SEA 1000: Australia’s Attack Class Submarines, Research paper series, 2019–20,
(Canberra: Parliamentary Library, 26 February 2020).
Is SSN capability too expensive?
Toshi Yoshihara, Jack Bianchi, Casey Nicastro, Focused
Force China’s Military Challenge And Australia’s Response, (Washington
DC: Center for Strategic and Budgetary Assessments, 22 January 2025)
Peter Jennings and Jennifer Parker, Does
AUKUS Pillar I Provide Capability ‘Bang for Buck’?, Debate papers, (Sydney:
United States Studies Centre, 18 June 2024).
Andrew Davies, ‘Sunk
Costs: Our High-Stakes Gamble on Nuclear Powered Submarines’, Australian
Foreign Affairs 20, (February 2024): 87–100.
Peter Briggs, Can
Australia Afford Nuclear Propelled Submarines? Can We Afford Not To?, Special
report, (Canberra: Australian Strategic Policy Institute, 16 October 2018).
Can the AUKUS Pathway succeed in delivering SSNs?
Peter Briggs, ‘AUKUS
Risks are Piling Up. Australia Must Prepare to Build French SSNs Instead, The
Strategist, 5 December 2024.
Justin Burke, ‘Opinion:
Dwelling On Untaken AUKUS Paths is Negativity We Don’t Need’, Australian
Financial Review, 24 July 2024.
Elizabeth Buchanan and Richard
Dunley, Is
Australia’s AUKUS Submarine Pathway Really ‘Optimal’?, Debate papers, (Sydney:
United States Studies Centre, 18 June 2024).
Jennifer Parker, ‘Opinion:
Here are the Facts about Australia’s Nuclear Submarine Program’, Australian
Financial Review, 28 May 2024.
